Musion Eyeliner 3D Holographic Laser Projection System Display , HD Video BasedLaser
Musion Eyeliner Hologram System:
HD video based 3D-projection system.
Allows holographic-type animated images to be displayed.
Large scale system allows for life-like, life-size images to be displayed.
Custom systems can be constructed for specific projects.
Systems available for rental, ideal for exhibitions and PR events.
Holographic Projection System Elements including:
-
HD projector and lens - number of lumens depending on size of required projection, stage and audience.
-
Reflective surface/The bounce screen
-
HD media player - to run the HD content.
-
Our 3D-holofilm - the key ingredient to creating our 3D holographic displays
-
Our unique tension system to secure the 3D-holofilm in place.
-
Steel pipe frame to attach 3D-holofilm to the truss.
-
Stage set-up essentially a “black box" constructed using aluminum truss, black drapes, staging, lights, and a audio system.
-
3D holographic Content Creation of a 3D-video produced HD film, animation and special effects.
-
Lighting and audio systems to add to the dramatic 3D hologram effect
3D Musion Eyeliner Foil Specifications:

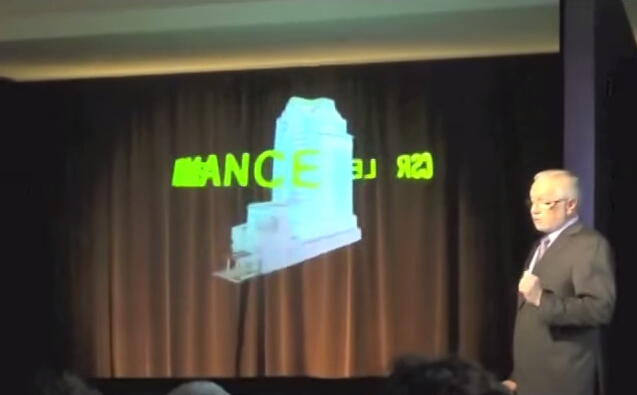

The image is projected full size onto a transparent screen giving the illusion that the dancers are live on stage.The transprent holographic foil is used for displaying 3D holographic images onto the stages, the foil is placed across the front of the stage at an angle of 45 degrees towards the audience; recessed below the screen is a bright image supplied by an LED screen or powerful projector. When viewed from the audience's perspective, the reflected images appear to be on the stage.
| Item | Width | Length | Thickness | Transmittance |
| Holographic Foil | 10 Meter | 30 Meter | 65-95um | 97% |
| Reflectance | View Angle | Gain | Stretching Resistance | Hardness |
| 19.70% | 160 degree | 2 | 880.LBS% | 3H |
Mounting Tension System Specification
--Used to fix the Holo Foil in Place
--Adjust the Foil Surface to be Flat and Tight
--Different according to Foil Size
Applications:
Live Events
Product Launches
Music Concerts
Fashion Shows
Advertising
Conference
Trade Show
Stage Hologram
