4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k

Brand Name : SMX

Model Number : MX-VL820U

Certification : RoHS&CE

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces Per Month

Delivery Time : 10 work days

Packaging Details : carton

Brightness : 20000 Lumens

Resolution : WUXGA (1920 x 1200)

Contrast Ratio : 3,000,000:1

Light source : NICHIA LASER

Feature : Internet Ready, Built-In Speakers

Laser Life time : 30000hrs

Throw Ratio : 1.24-2.01

Display Technology : Liquid Crystal Display

Screen size : 60-500 inch

Aspect Ratio : Native:16:10 Compatible: 4:3/16:9/normal/16:6

MAX Dimensions (WxHxD mm) : 599X240.2X493.8mm (not including len)

Net. Weight (KG) : 28.9Kg (not including len)

Contact Now

2024 New 4K Projector 20000 Lumen Outdoor Video Ansi Native Laser Tv Active 3d Projector Beamer 4k

Specification for 8200 Lumen Laser Projector

Laser projectors are most valuable for their efficiency, as they fully utilize their light output and therefore do not need as
many resources in order to run. This means using less electricity, producing less heat, and even removing the heating period that some projectors need to start their operation.

With real 20000 lumens, Full HD WUXGA resolution, and 4K enhancement technology, the MX-VL820U produces sharp, lifelike images for an exceptional widescreen display.

Features

◆ 3LCD tech, 3000,000 hours Led Lamp of real life time
◆ High brightness 20000 Lumens
◆ High contrast (3000000:1)
◆ Multiple Interfaces (HDMI, USB-A, HD BaseT, VGA, 3.5mm, RS232, RJ45, USB-B)
◆ V&H:±30°/Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction/Grid image tune
◆ Optional Resolution: WUXGA/WXGA/XGA, all support 4K
◆ Aspect ratio: 16:9/16:10/4:3
◆ Support Mirror&Wireless&Airplay etc.
◆ Best picture quality
◆ 360° projection

Hex Correction & Multi-Point Correction

Horizontal & vertical trapezoidal correction, as well as hexagonal correction, pillow/barrel distortion correction, and multi-point trapezoidal correction. The easy adjustment operation ensures that the user obtains the best imaging effect on all kinds of irregular projection surfaces.

5000000:1 Dynamic Contrast Ratio

Ensure that every detail of the screen, including the dark part of the screen can also fully express its level, to bring you a
rich and delicate visual enjoyment. rich and delicate visual enjoyment.

4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k

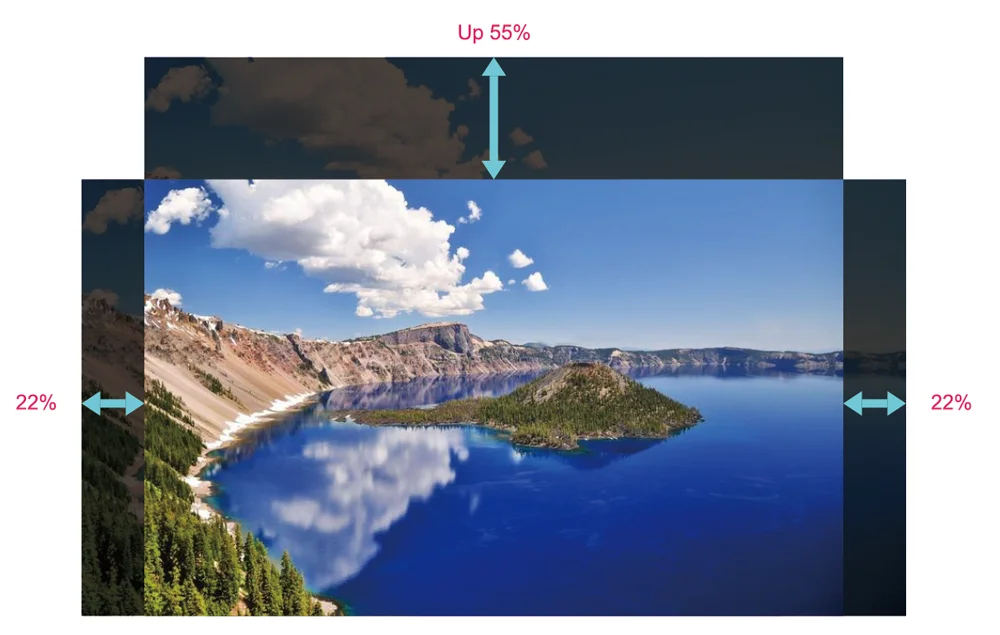

Optical Zoom, Lens Shift, More Convenient Installation and Debug

The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily adjust the projected image position. The maximum adjustment range is 60% (upward) in the vertical direction and ±29% in the horizontal direction. The maximum vertical adjustment range is 60% (upward) and the maximum horizontal adjustment range is ±29%.

4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k

Optical Zoom, Lens Shift, More Convenient Installation and Debug

Physical Display

SMX 20000 Lumen 3LCD Laser Projector
Model	Model#	MX-X20000U
Key parts
	Light source	Laser
	Mainchip	Topaz Prime PWC895
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Life time	Normal mode	20000hrs
Laser Life time	ECO mode	30000hrs
Projection Lens	Len Model	MX-EG12ZLM
	Image Circle	Φ37.9
	Lens Type	Zoom Lens ST1
	Zoom/Focus	Motorized
	F#(Wide-Tele)	1.80-2.24
	f(mm)	27.7-44.3
	Throw Ratio(16:10)	1.24-2.01
	Zoom Ratio	1.62
	Screen size (Performance guarantee range)	60-500 inch (80-500 inch)
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full: 46db Normal: 44db Eco1: 43db Eco2: 42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI (3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
General Spec
Audio	Speaker	N/A
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Full) (Max)	1155W
	Power Consumption (Normal) (Max)	1000W
	Power Consumption (ECO1) (Max)	825W
	Power Consumption (ECO2) (Max)	580W
	ECO Standby Mode Power Consumption	<0.5W
